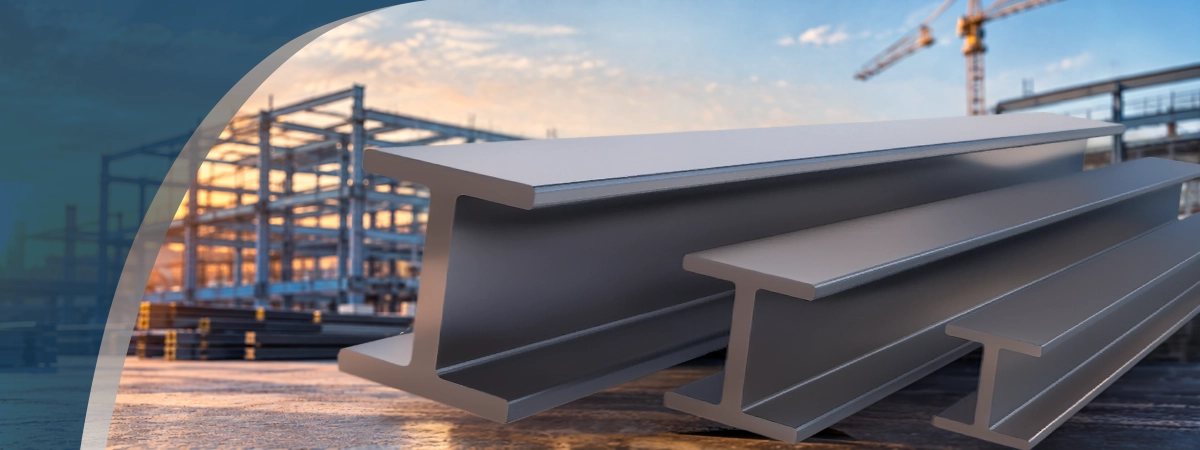

British Universal Columns (UC)
Hot-rolled universal columns to BS 4-1 / EN 10025, used primarily as vertical load-bearing members in steel-framed structures.
Overview
152×152 to 356×406, engineered for vertical load.
Hot-rolled universal columns to BS 4-1 / EN 10025, used primarily as vertical load-bearing members in steel-framed structures. Full designation/dimension tables are available in our downloadable catalogue or on request.
| Designation | Standard | Depth | Weight Range | Typical Grade |
|---|---|---|---|---|
| 152x152 | BS 4-1 / EN 10025 | 152 mm | 23 – 37 kg/m | S275 / S355 |
| 203x203 | BS 4-1 / EN 10025 | 203 mm | 46 – 86 kg/m | S275 / S355 |
| 254x254 | BS 4-1 / EN 10025 | 254 mm | 73 – 167 kg/m | S275 / S355 |
| 305x305 | BS 4-1 / EN 10025 | 305 mm | 97 – 283 kg/m | S275 / S355 |
| 356x368 – 356x406 | BS 4-1 / EN 10025 | 356 mm | 129 – 634 kg/m | S275 / S355 |
Full designation/dimension table available in our downloadable catalogue. Other sizes and grades available on request.
Applications
Structural columns in multi-storey buildings, industrial structures and heavy load-bearing frames.
